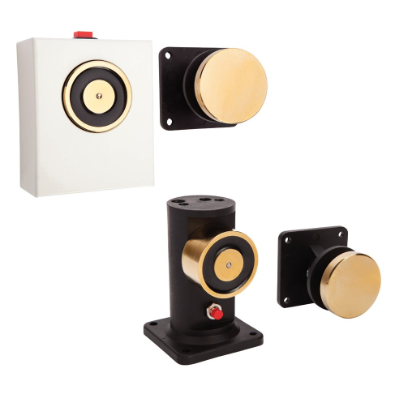

PRODUCT R40 SERIES

Standard Magnetic Door Holders Fire Rated

PRODUCT DESCRIPTION

Fire and smoke door, magnetic holder, titanium alloy surface finished, elegant appearance. Installed on fire and smoke doors in projects where doors are required to be held in the open position for both pedestrian and general traffic, the devices have to be linked into a buildings fire/smoke alarm system.



When an alarm occurs, power is removed from the devices and the doors are returned to the closed condition, preventing the spread of fire and/or smoke to other areas. The devices are fire tested to a rating of 4 hours and are supplied either 12 or 24VDC.

Technical Specification

PART No.

R40-12(12Volt)

R40-24(24Volt)

R40PCV12(12Volt)

R40PCV24(24Volt)two

FUNCTION

Wall mount electro magnetic door holder

for fire and smoke doors

Floor mount electro magnetic door holder

for fire and smoke door

HOLDING STRENGTH

Up to 25kg

Up to 25kg

VOLTAGE/CURRENT

12VDC/160mA 24VDC/80mA

12VDC/160mA 24VDC/80mA

SIZE

D= 41.5 x W= 71.8 x H= 85.3

D= 62 x W= 59 x H= 88mm
