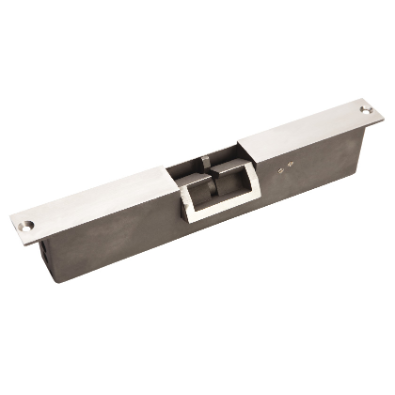

PRODUCT FES110

High Security Electric Deadlock Strike

PRODUCT DESCRIPTION

The FES110 series deadlock electric door strike release mechanism has been designed to provide door access control while maximising security to a door assembly fitted with square bolt deadlocks.



The FES110 monitors both door lock tongue and internal locking of the strike. The device is supplied in 12VDC or 24VDC, 2 year warranty.

Technical Specification





PART No.



       FES110-30-12PTL/24PTL            FES110-40-12PTR/24PTR

FUNCTION


Power To Lock

Power To Release



HOLDING STRENGTH



Up to 500kg Up to 500kg



VOLTAGE/CURRENT



12VDC/900mA 24VDC/450mA 12VDC/900mA 24VDC/450mA



APPROVALS



2 hour fire rated and S.C.E.C. Approved 2 hour fire rated and S.C.E.C. Approved



MONITORING



Lock bolt and locking solenoid

Lock bolt and locking solenoid

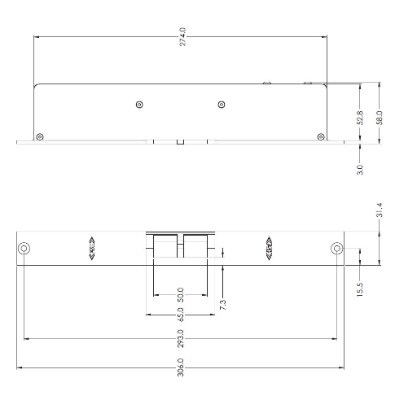

SIZE



L= 306 x W= 32 x H= 58mm L= 306 x W= 32 x H= 58mm
