PRODUCT ECO5700HS

High Security Power Saving Electro Magnetic Locking Device EcoMag™



PRODUCT DESCRIPTION

The patented ECO5700HS model is a high security power saving Electro-Magnetic Lock with an individually encoded addressable armature plate. The lock will only recognize its own armature plate to prevent the device from being compromised by false plates.



Under normal, non-alarm conditions, the ECO5700HS “EcoMag” operates in a low current `Sleep-Mode’ of 70mA @ 24V with a holding force of 340kg. In the event of an unauthorised attempt to open the door, the ECO5700HS “EcoMag” “wakes up” and goes into an Alarm Mode with full current of 300mA @ 24V applied to the device, instantly increasing the holding force to up to 680kg.



The EcoMag operates on multi voltage 10-26VDC, provides an Early Warning (EW) signal output, has a built-in local Alarm Buzzer, with full monitoring of Lock Status and Door Status, long distance Light Panel indicator and an Exit Switch Delay function.





Technical Specification





PART No.







ECO5700HS







FUNCTION







Power To Lock (Fail Safe)







HOLDING STRENGTH







Up to 680kg in “Alarm-Mode”

340kg in “Sleep-Mode”







VOLTAGE/CURRENT







Multi Voltage 10-26VDC

Sleep-Mode: 12VDC=140mA/24VDC=70mA

Alarm-Mode: 12VDC=600mA/24VDC=300mA







MONITORING







Addressable Armature Plate

Door Status Monitoring Sensor (DSS)

Lock Status Monitoring Sensor (LSS)

Early Warning Signial Output and Local Alarm Buzzer (EW)

Exit Switch Delay Function

Long Distance Light Panel (LP)







              SIZE

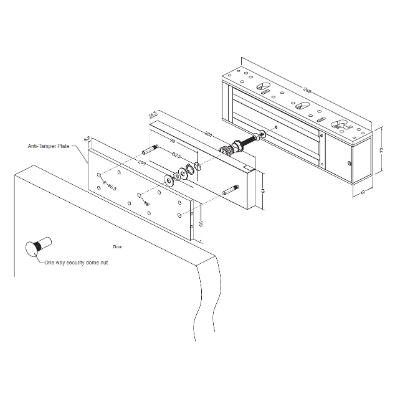

Magnet: L= 268 W= 40 D= 73mm

                    Armature Plate: L= 209 W= 6.2 D= 66mm
