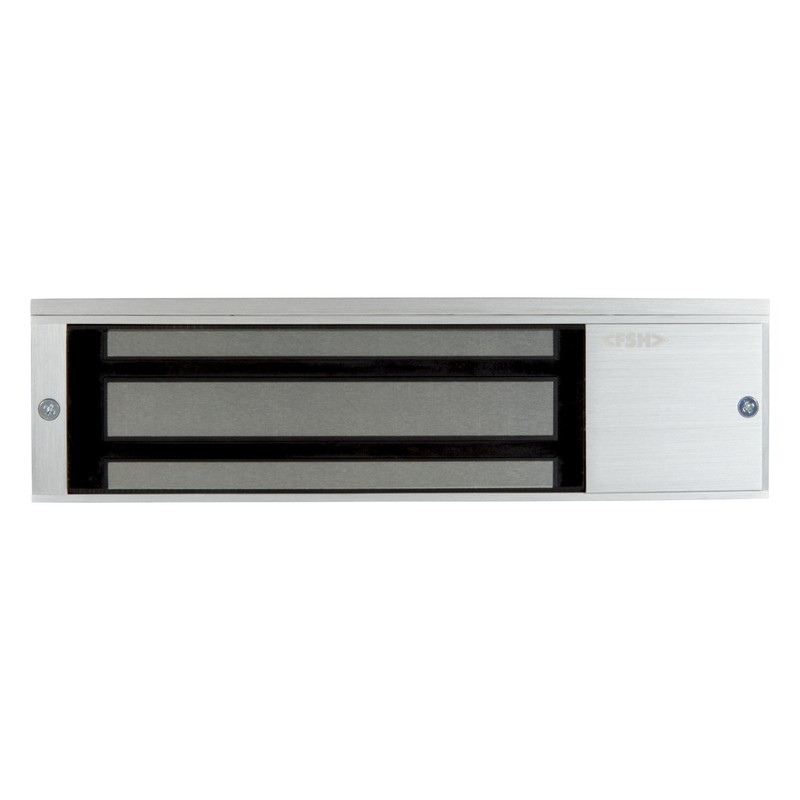

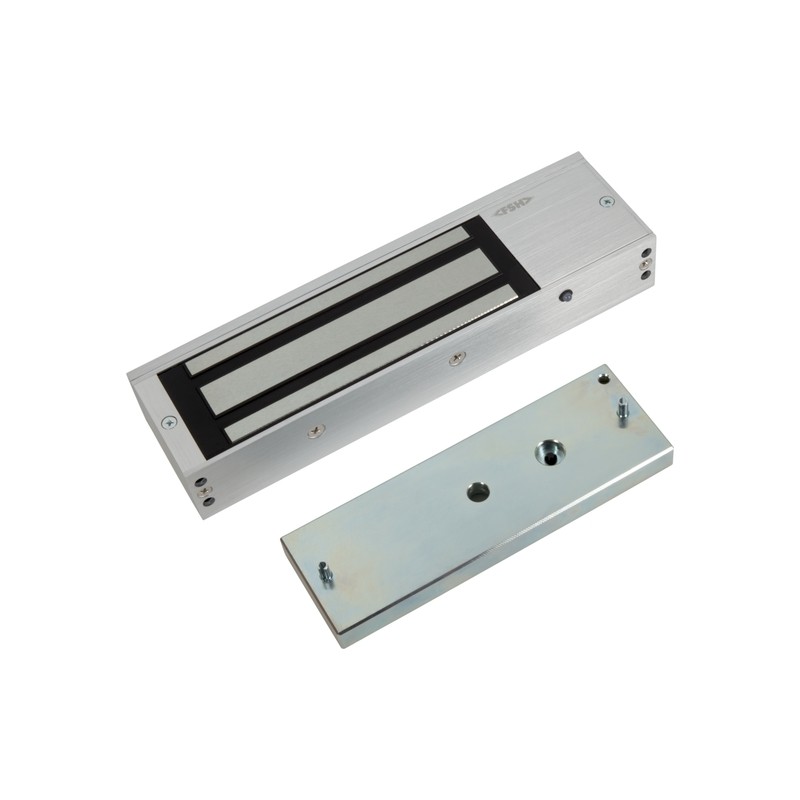

FEM6600 SERIES

Non-monitored/Monitored Single/Double electromagnetic locks

PRODUCT DESCRIPTION

The FSH 6600 Series of Electro Magnetic Locks come with a 5-year mechanical warranty and a hold force of up to 580kg, so you have the peace-of-mind that entrances are secured to protect people and property.

Tested to Australian and New Zealand standards, including a 2-hour fire rating, these locks come in single or double (D) versions, monitored (M) or non-monitored. Once powered off, the maglocks have no residual magnetism to extend the life of the lock and door, and give a better user experience.

The monitored versions (M), include a red-green coloured LED indicator to quickly identify the door and lock status.

Activated by a number of credential readers such as PIN pads, fob readers or other access control platforms, this range is ideal for most commercial applications.

Technical Specification





PART No.









FEM6600(Single)

FEM6600D(Double)









FEM6600M(Single)

FEM6600DM(Double)









HOLDING STRENGTH









Up to 580kg (for single magnetic lock)









Up to 580kg (for single magnetic lock)









VOLTAGE/CURRENT









Dual Voltage 12/24VDC,

12VDC= 500mA (Double x2)

24VDC= 500mA (Double x2)









Dual Voltage 12/24VDC,

12VDC= 500mA (Double x2)

24VDC= 500mA (Double x2)









APPROVALS









2-hour fire rated in accordance with AS1905.1:2015 (contact Allegion for more details)





2-hour fire rated in accordance with AS1905.1:2015 (contact Allegion for more details)





MONITORING









N/A













Red-Green Bi-colour LED

LSS

DSS









SIZE









Single door series magnet:
268mm (L) x 73mm (W) x 40mm (D)



Single door series armature plate:
190mm (L) x 61mm (W) x 16mm (D)

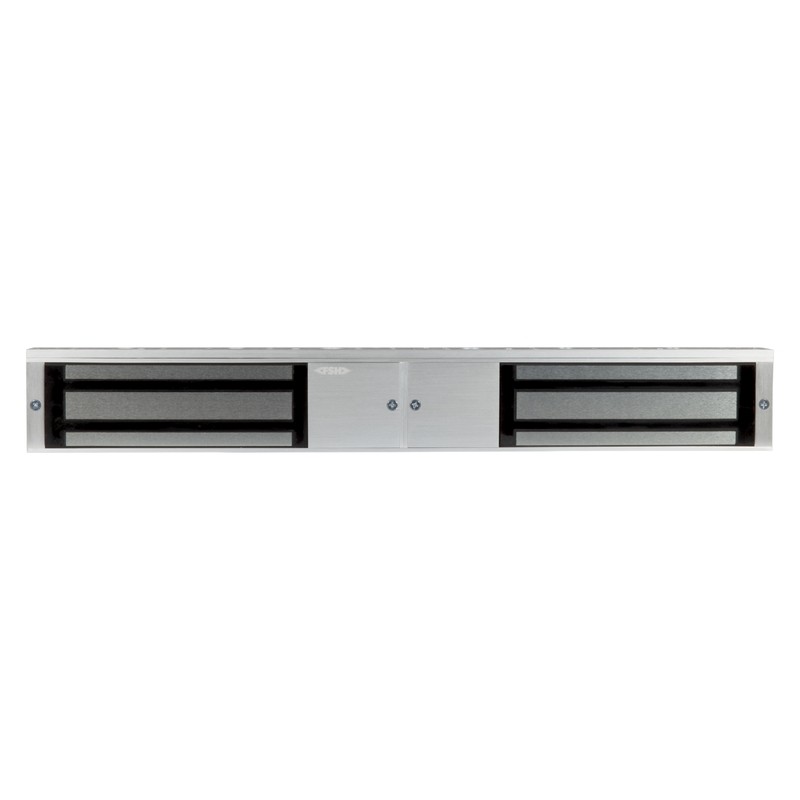

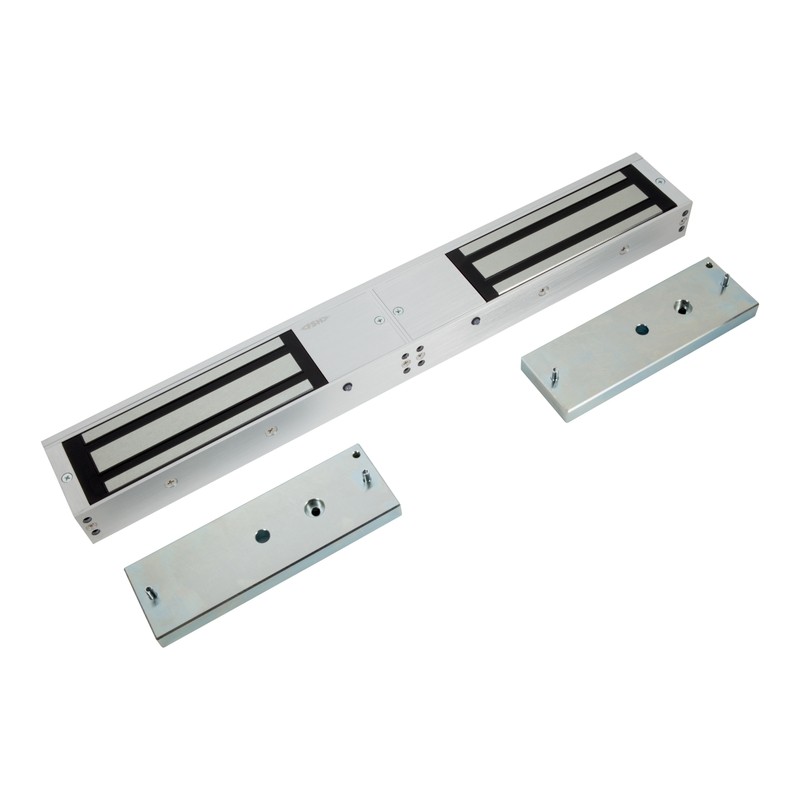

Double door series magnet:
535mm (L) x 73mm (W) x 40mm (D)

Double door series armature plate:
190mm (L) x 61mm (W) x 16mm (D) x 2 pieces
