FEM4300

Electromagnetic locks

PRODUCT DESCRIPTION

The FSH FEM4300 Series of electromagnetic Locks come with a 5 year mechanical warranty and a hold strength of up to 280kg, so you have the peace-of-mind that entrances are secured to protect people and property.

Tested to Australian and New Zealand standards, including a 2-hour fire rating, these maglocks are Dual Voltage, 12/24VDC, and come in single or double (D) versions, either monitored (M) or non-monitored. Once powered off, the maglocks have no residual magnetism, which extends the life of the lock and door and gives a better user experience.

The monitored versions (M), include a red-green coloured LED indicator to quickly identify the door and lock status. Activated by a number of credential readers such as PIN pads, fob readers or other access control platforms, this range is ideal for most commercial applications.

Technical Specification

PART No.

FEM4300(Single)

FEM4300D(Double)

FEM4300M(Single)

FEM4300DM(Double)

HOLDING STRENGTH

Up to 280kg

(for single magnetic lock)

Up to 280kg

(for single magnetic lock)

VOLTAGE/CURRENT

Dual Voltage 12/24VDC

12VDC= 500mA (Double x2)

24VDC= 250mA (Double x2)

Dual Voltage 12/24VDC

12VDC= 500mA (Double x2)

24VDC= 250mA (Double x2)

APPROVALS

Up to 2-hours fire rated

in accordance with AS1905.1:2015

(contact Allegion for more details).

Up to 2-hours fire rated

in accordance with AS1905.1:2015

(contact Allegion for more details)

MONITORING

N/A

Red-Green Bi-colour LED

Lock Status Sensor (LSS)

Door Status Sensors (DSS)

SIZE

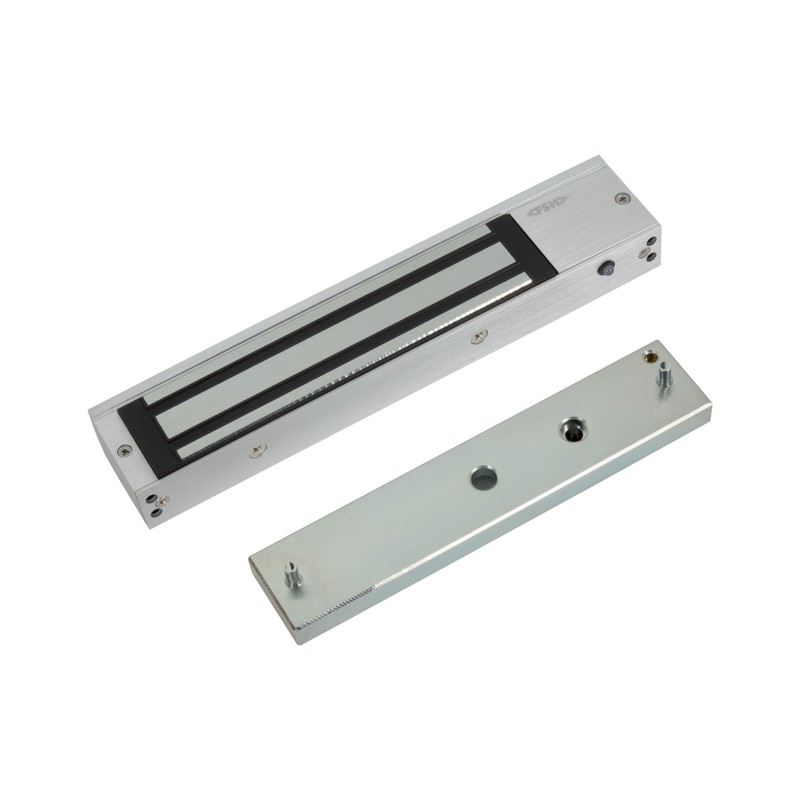

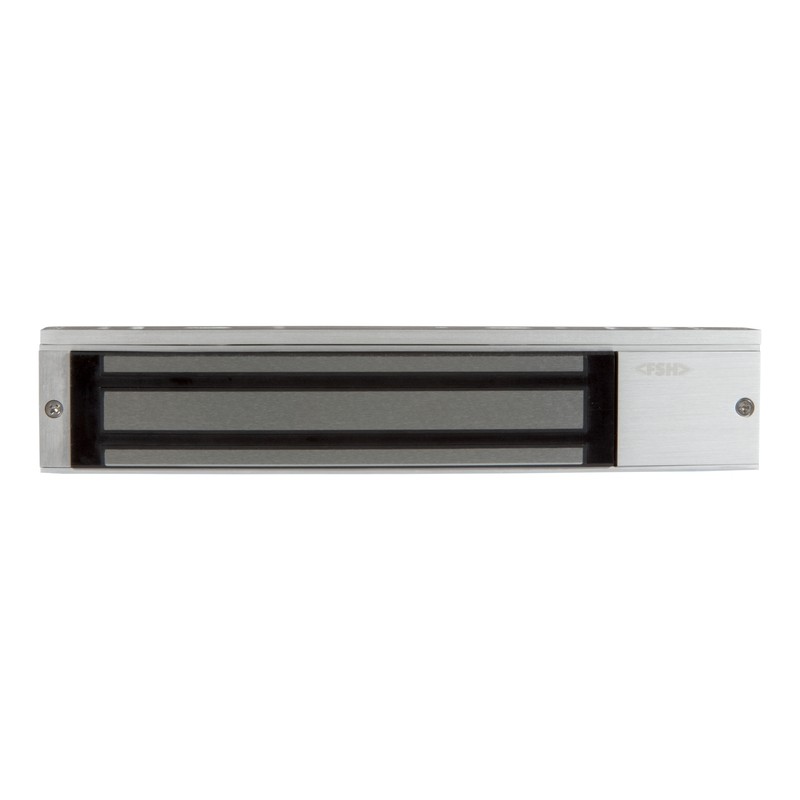

Single door series magnet:

238mm (L) x 48mm (W) x 25mm (D)



Single door series armature plate:
185mm (L) x 38mm (W) x 12mm (D)

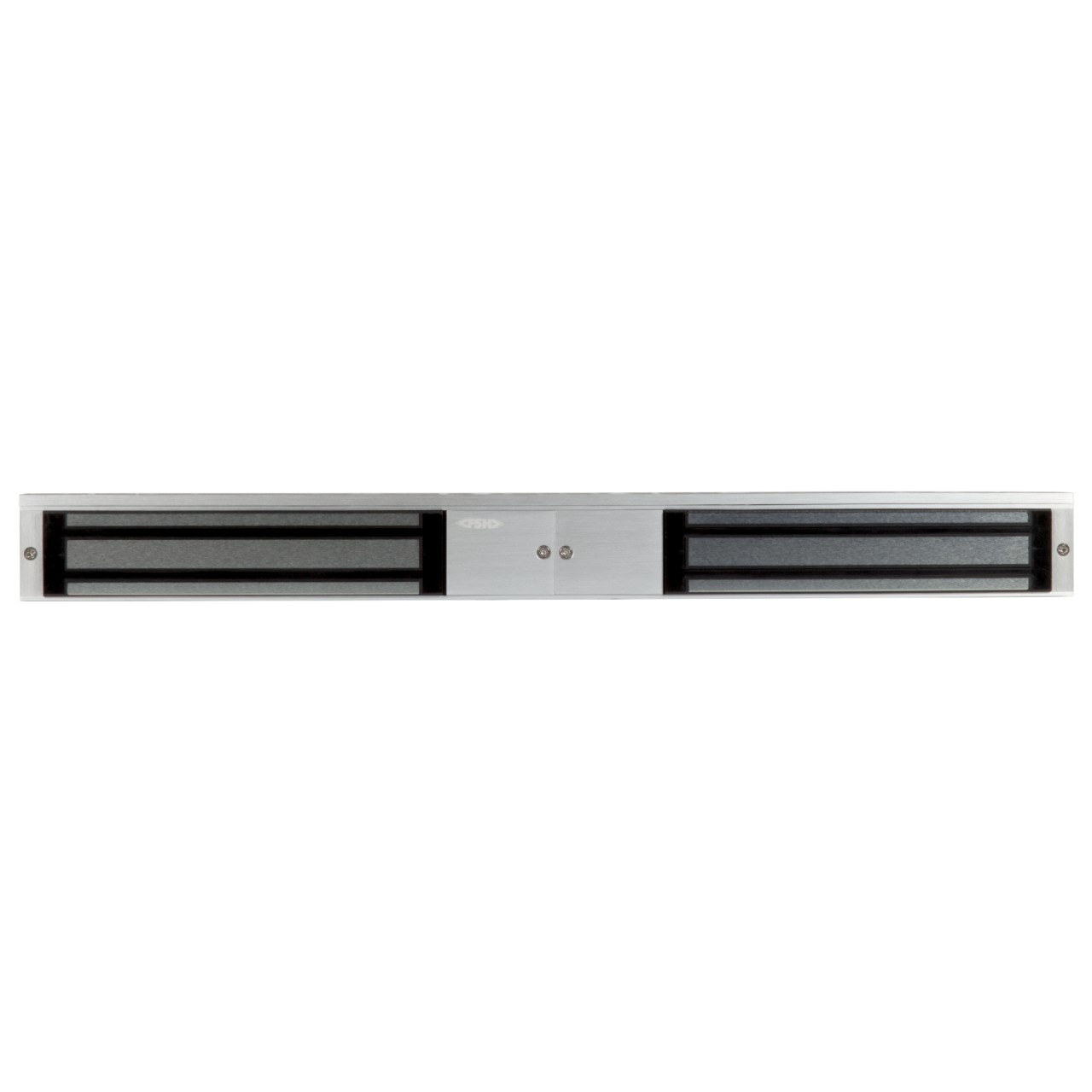

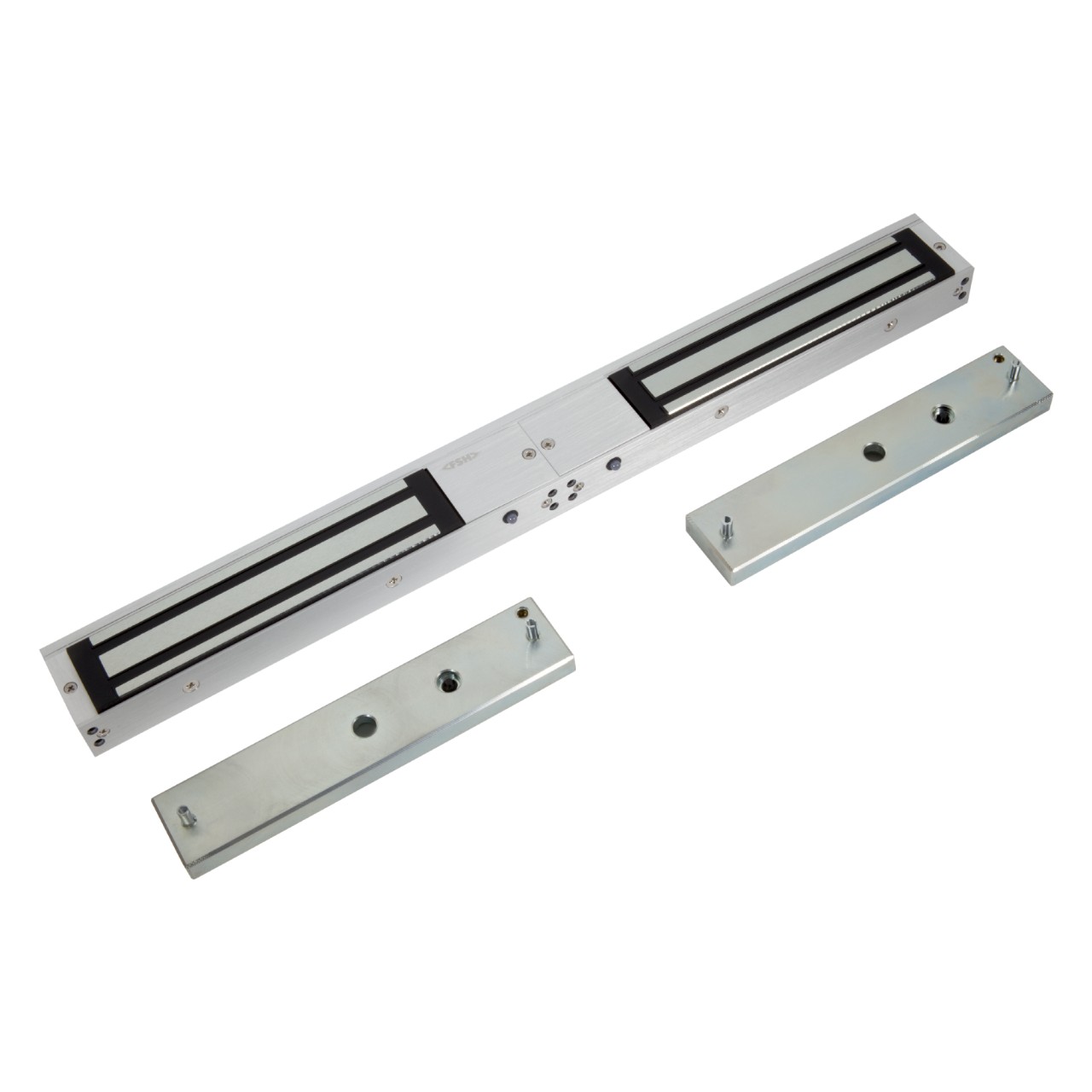

Double door series magnet:

477mm (L) x 48mm (W) x 25mm (D)

Double door series armature plate:
 185mm (L) x 38mm (W) x 12mm (D) x 2 pieces
