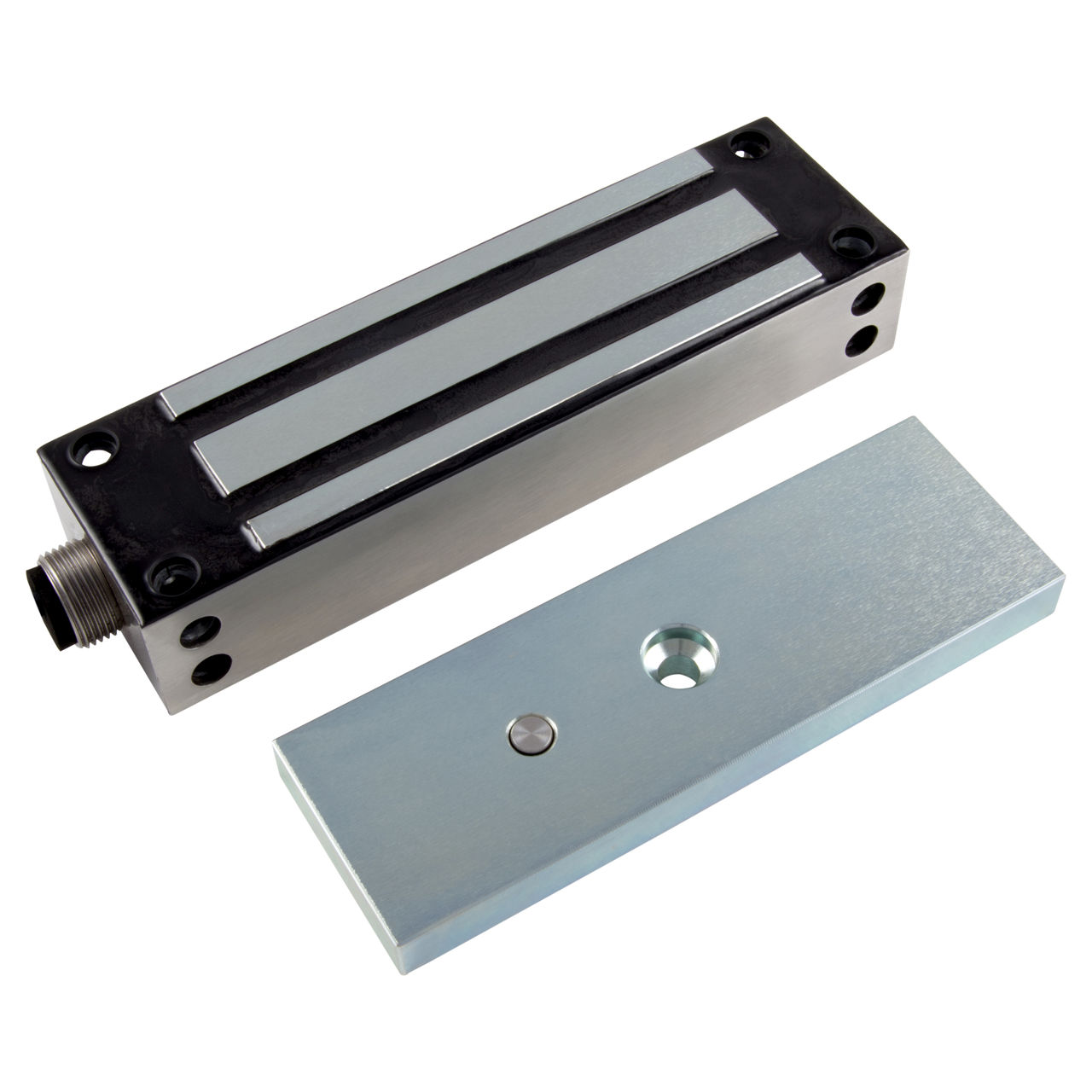

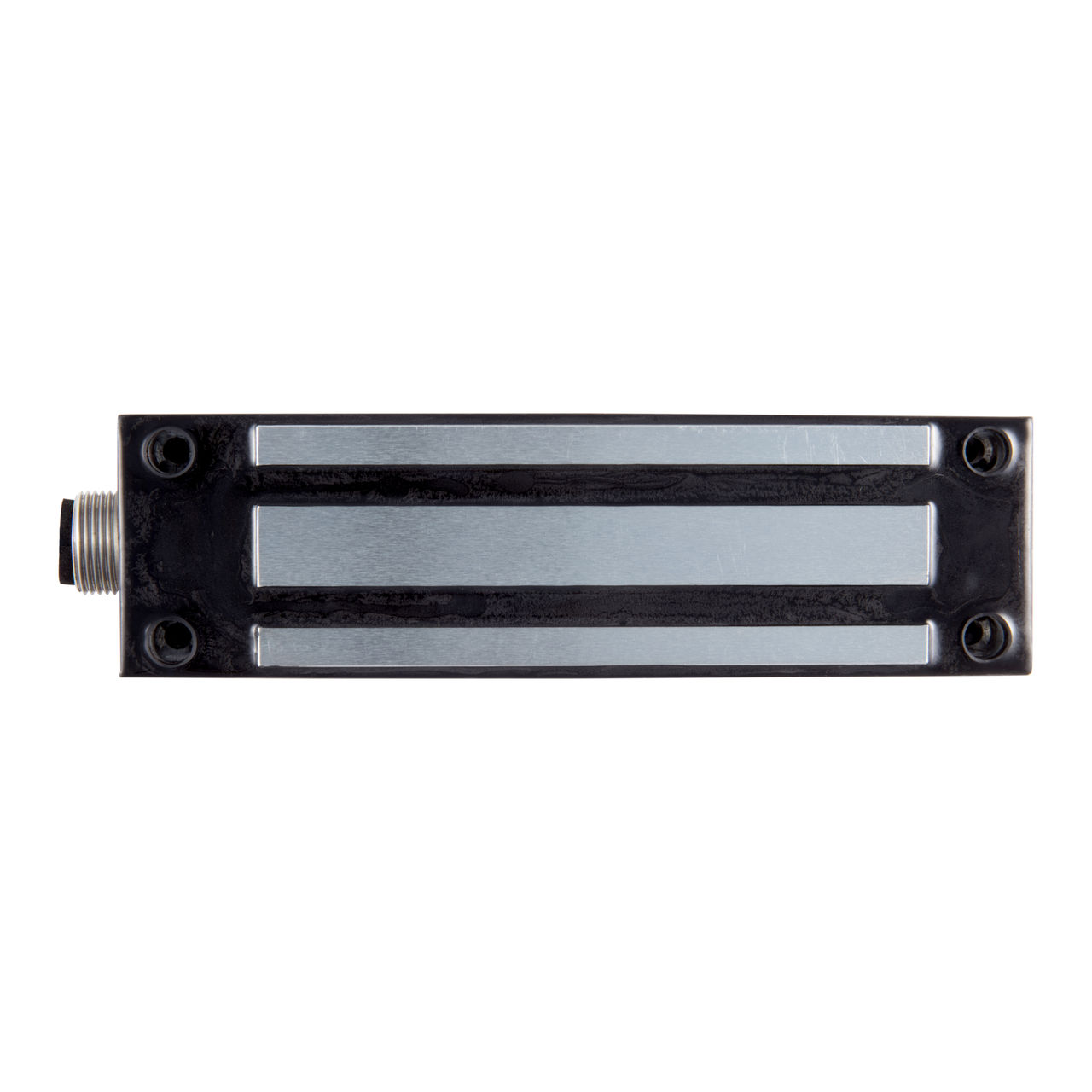

FEM5400WM

Weather Resistant Monitored
Electromagnetic locks

PRODUCT DESCRIPTION

The FSH FEM5400WM weather resistant electromagnetic locks have a holding strength tested up to 570kg and come with a 5 year mechanical and electronic warranty so you have the peace-of-mind that entrances are secured to protect people and property.

Tested to Australian and New Zealand standards, these maglocks are Dual Voltage, 12/24 VDC with Lock Status Sensor (LSS). The maglocks have no residual magnetism, which extends the life of the lock and door and gives a better user experience.

The maglocks can be activated by credential readers such as PIN pads, fob readers or other access control platforms.

The FEM5400WM is IP68 rated and designed for external applications exposed to wind and weather.

Technical Specification

MODEL

FEM5400WM

HOLDING STRENGTH

Tested up to 570kg

VOLTAGE/CURRENT

Dual Voltage 12/24VDC

12VDC/500mA

24VDC/250mA

MONITORING

Lock Status Sensor

Contacts rated max 3W (max switching contact at 0.25A) at 30VDC

DIMENSIONS IN MM

Magnet:

220 (L) x 63.5 (W) x 41 (D)

Armature:

185 (L) x 60.8 (W) x 16 (D)

CONSTRUCTIONS



Stainless Steel Housing
