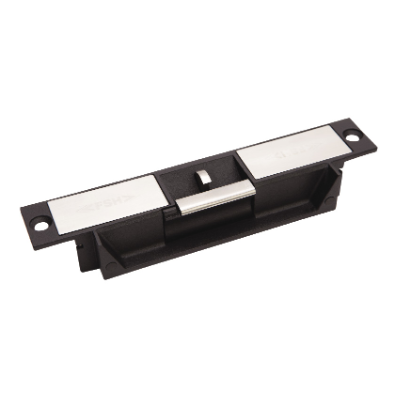

PRODUCT FES90M-P

High Security Electric EcoStrike with Pre-Lock Capability - Australia Footpath

PRODUCT DESCRIPTION

The patented FES90M-P motorised High Security Electric EcoStrike with up to 35kg Pre-Load capability is a revolutionary electric locking solution. With a high Pre-Load/Side-Load tolerance and minimal energy consumption in ‘Sleep-Mode’ it is  a truly “Green Locking Solution”.



The strike accepts voltages from 10 to 30VDC, is pre-drilled for extension lips and has a unique and simple fail secure (Power To Open)/ fail safe (Power To Lock) switch-over function.



The door strike provides 3 forms of monitoring:

  1. LSS (Lock Status Sensor)
  2. DSS (Door Latch Sensor)



The electric strike consumes current less than 300mA @ 12VDC at full 35kg pre-load only during locking and unlocking action. In the locked or unlocked state (Sleep-Mode), the electric strike consumes current less than 15mA @ 12VDC.



FES90MP comes with a 10mm strike lip as standard, to prevent possible personal injury and damage to clothing as with 15mm lips.

Technical Specification



   PART



                           FES90M-P



 FUNCTION



Mortice Mount, Power-To-Lock/Power-To-Release field interchangeable, 35kg of Pre-Load capability

HOLDING STRENGTH



Up to 1370kg

Tested to 1.5Mill full 35kg pre-load cycles



VOLTAGE/CURRENT



Multi Voltage 10-30VDC

Action Mode: 300mA @ 12VDC at full 35kg pre-load only during locking and unlocking action

Sleep-Mode: 15mA @ 12VDC in locked or unlocked mode



APPROVALS



4 hour fire rated to A.S. and B.S. Standards

CE

C-TICK



MONITORING



LSS - Status Sensor of the internal locking mechanism

DSS - Door Latch Sensor, Door latch engaged within strike keeper



ENVIROMENTAL



Operational Temperature Range -20º to +60ºC
