PRODUCT FES15 Series

Electric Strike - Rim Mounted (Surface)

PRODUCT DESCRIPTION

The patented RIM-Mounted, FES15 Series Electric Door Strikes are designed for pedestrian gate application or any other light commercial/esidential application where a RIM Mounted strike is required. They accept voltages of either 12 or 24VDC, are fire tested up to a 2 hour fire resistance rating to both Australian and British Fire Test Standards.



The strike are easily site-interchangeable Power To Lock (PTL) or Power To Release (PTR) by simply changing over the Barbell mechanism. The device comes with a 5 year warranty and has a holding strength of up to 1250kg. The FES15M version comes with Door Status Sensor (door latch monitoring) and the non-monitored FES15 version is weather resistant IP56 rated.

Technical Specification





PART No.

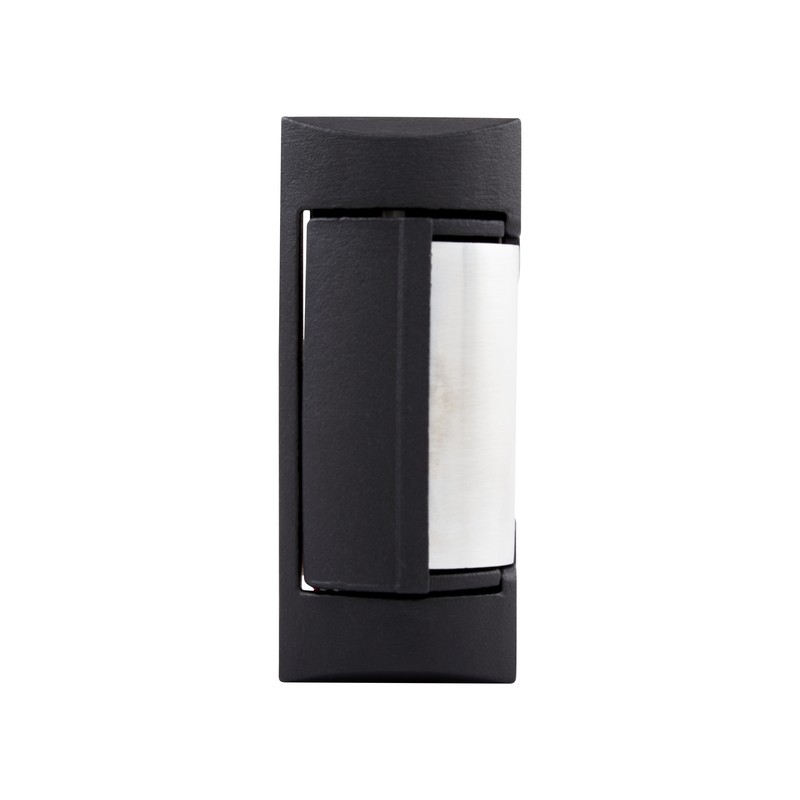

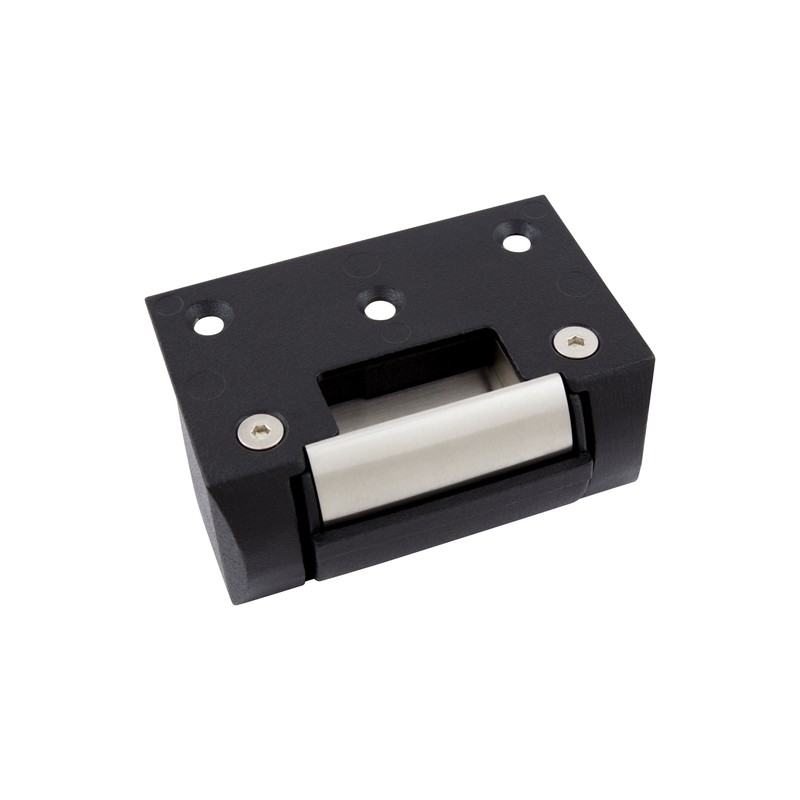

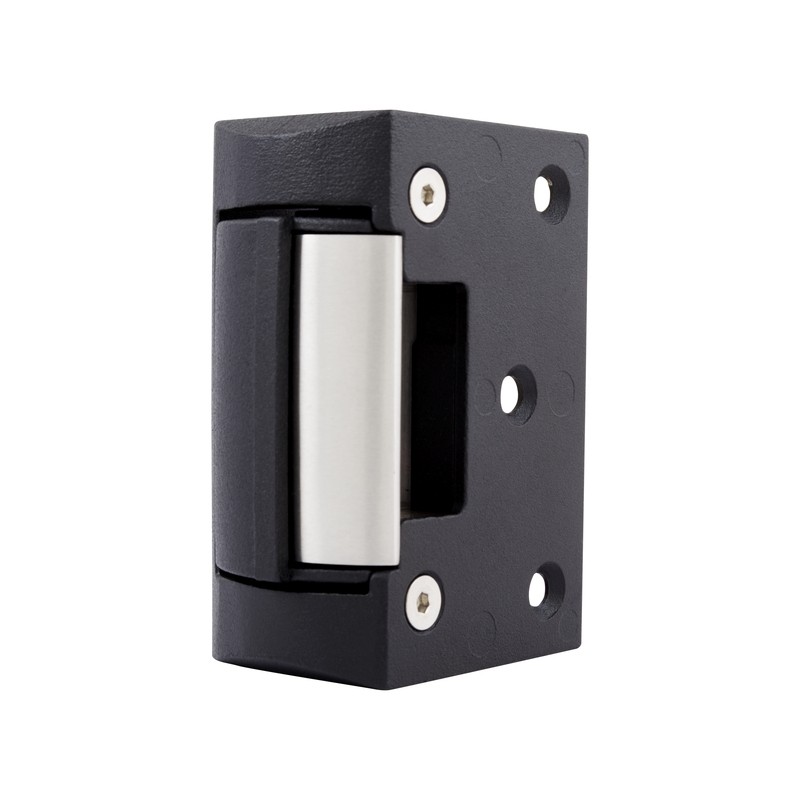

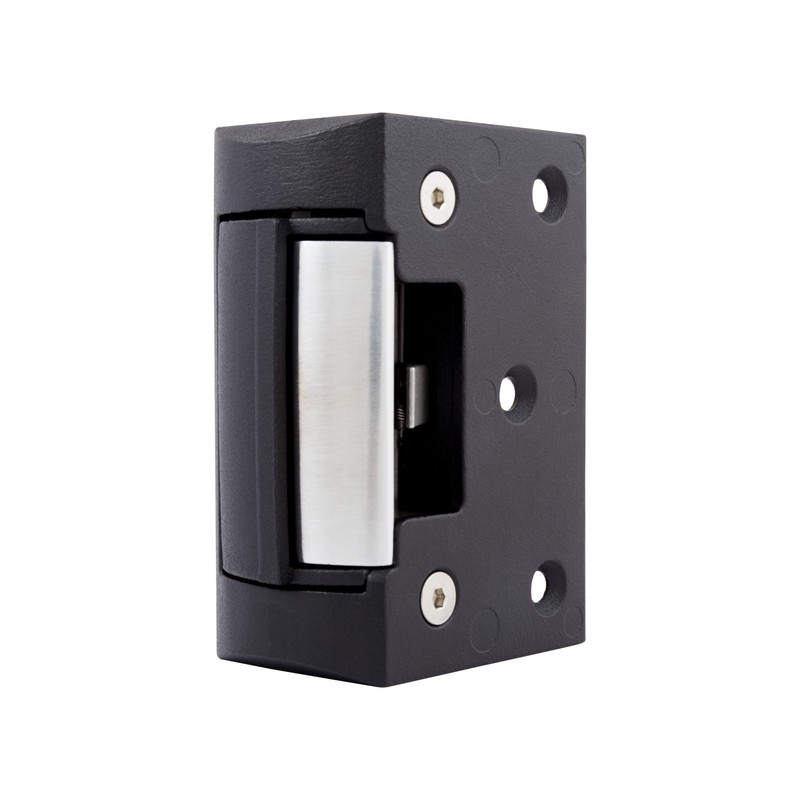

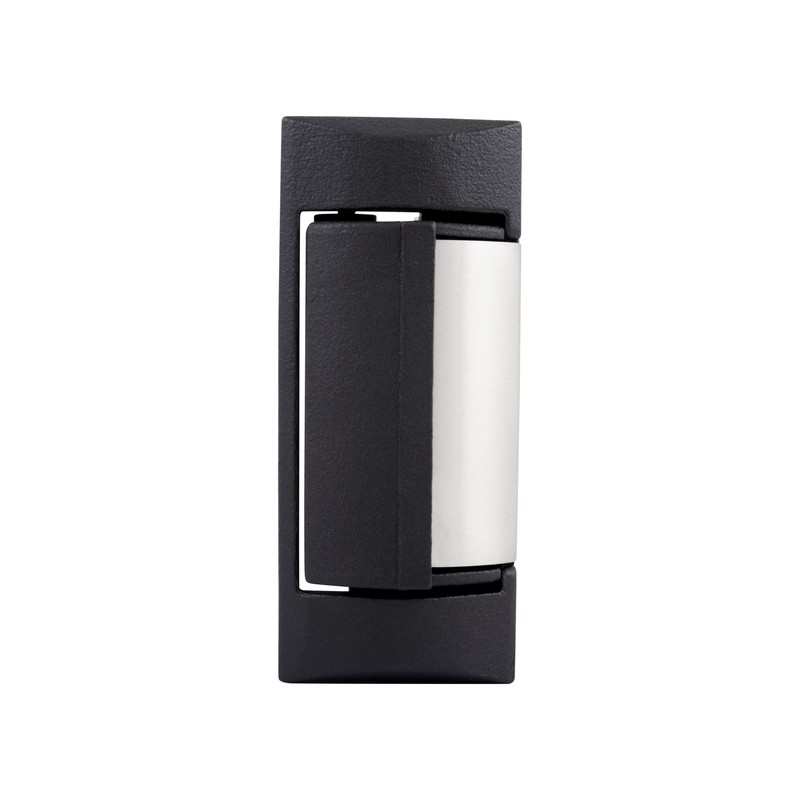

  FES15M FES15

FUNCTION


Surface mount electric strike for rim latch control

Surface mount electric strike for rim latch control



HOLDING STRENGTH



Over 1252kg Over 1252kg



VOLTAGE/CURRENT



Dual voltage 12VDC/200mA 24VDC/100mA Dual voltage 12VDC/200mA 24VDC/100mA



APPROVALS



2 hour fire rating 2 hour fire rating



MONITORING



Door Latch monitoring

Anti Tamper monitoring

Non monitored



IP RATING



N/A Weather resistant iP56
