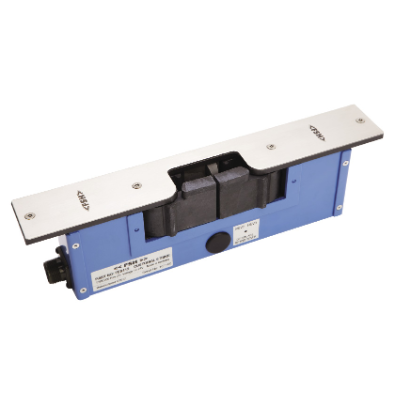

PRODUCT FES112

High Security Electric Custodial Strike

PRODUCT DESCRIPTION

The FES112 is purposely designed for heavy duty high security applications where superior holding strength is required, such as detention centres, correctional facilities and the like. The Strike works in conjunction with a heavy duty double throw deadlock. With a holding force in excess of 1000kg, multiple monitoring functions and multi-voltage regulation, the FES112 is the perfect locking device for a variety of high security installations and a viable solution for either new or retrofit high security projects. The device is supplied with a series 2 to series 3 simple change over switch.



Series 3 configuration provides the device with door position monitoring, in this configuration the FES112 cannot be secured until the door is in the closed position and the lock monitoring tongue is depressed.

Technical Specification



   PART No.



                                                   FES112



 FUNCTION



Power To Open (Fail Secure)



HOLDING STRENGTH



More than 1000kg



VOLTAGE/CURRENT



Multi Voltage 12-30VDC

12VCD, 1.5A current draw

24VCD, 0.75A current draw



APPROVALS



2 hour fire rated



TEMPERATURE RANGE



-20°C to +60°C

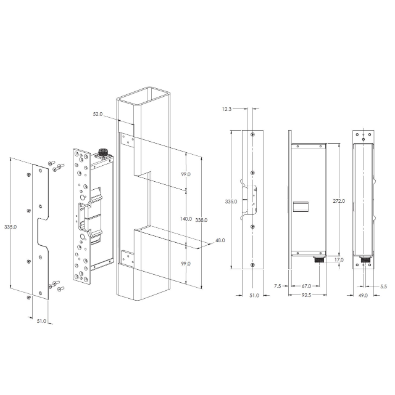

LOCK DEAD BOLT DIMENSION



Fully extended = 33-36mm

Width = 10-17mm Height = 57-59mm
