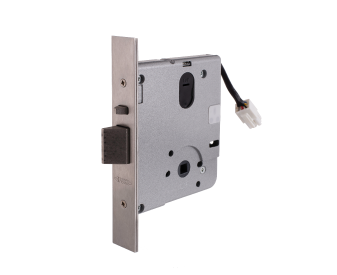

Electric Mortice Lock

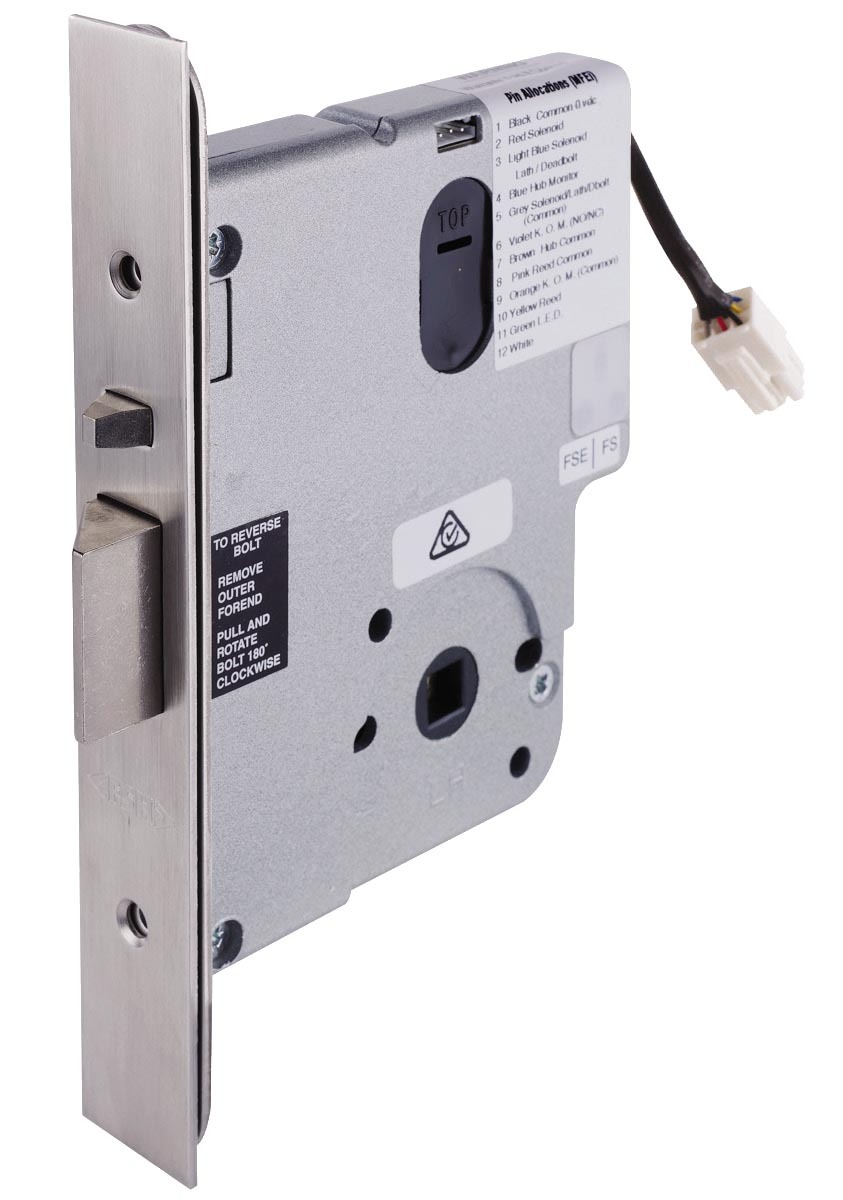

PRODUCT DESCRIPTION

The FEL990 Series Electric Mortice Lock us a true multi-functional locking device. It has been developed for simplicity - simplicity for the stockist, the installer and the end user.  Two options are available - either monitored or non-monitored.

The FEL990 Series locks can be easily configured:

  • Single-sided locking (Vertibute) / double-side locking (Combination)
  • Power to lock (fail safe) / power to open (fail secure)
  • Left hand / right hand operation



FEL990M also includes comprehensive monitoring:

  • Door position monitoring by reed switch
  • Lock status monitoring by a combination of 3 locking parameters:

          - locking bar (Hub and/or Handle is/are locked)

          - deadlatching bolt (depressed)

          - latchbolt (out)

  • Dual key override monitoring (KOM)
  • Request to exit (REX) via hub/handles(s)
  • LED indication

Technical Specification

PART No.

FEL990M                            FEL990



FUNCTION





Vestibule and Combination lock (field selectable of either/ or both sides locked)

Lock handed (Left/ Right Hand field selectable)



LOCK OPERATION



FAIL SAFE / FAIL SECURE adjustable on site - one product for both applications





VOLTAGE/CURRENT





Multi-voltage - 12-24 VDC / 350mA momentary, 100mA operating including

LED furniture if applicable

Reverse polarity protected

Lock secure status and key override microswitch max. rating 500mA@30VDC

Door status reed switch max. rating 100mA operating








APPROVALS





C-tick

Tested to 4 hour on fire door assemblies as specified in AS/NZ 1905.1 1997

          Part 1 Fire Resistant Doorsets

Conforms to S3* (Security) and D3 (Durability) Australian Lock Standard (AS4145.2:1993)

Conforms when used with equivalent S3 keying system

MONITIORING

(990M VERSION ONLY)



Lock bolt and locking solenoid

ENVIROMENTAL

-20 to +60 degrees C

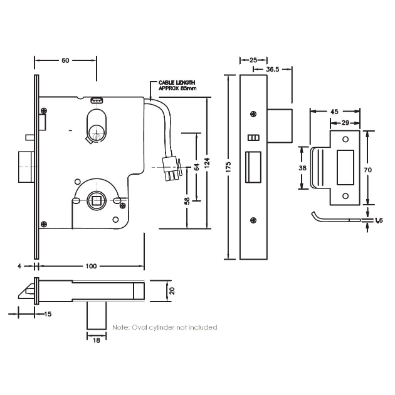

DOOR THICKNESS

32-50mm

BACKSET

60mm Optional: 70mm, 89mm and 127mm

CABLING

3m cable with 12 pin plug supplied

STANDARD FINISH

Satin stainless steel (other finishes on request)

FACTORY CONFIGURATION

Vestibule / 60mm backset / Fail Safe / Left handed / Satin chrome finish
