    • PRODUCT ECO5700HS

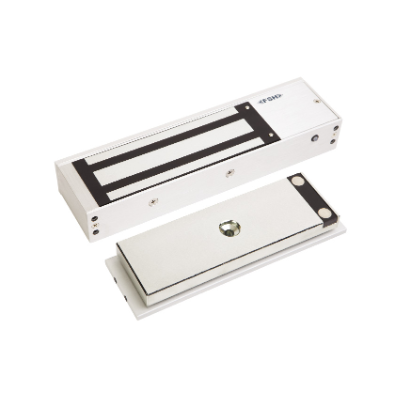

    High Security Power Saving Electro Magnetic Locking Device EcoMag™



    PRODUCT DESCRIPTION

    The patented ECO5700M model is a power saving Electro-Magnetic Lock.



    Under normal, non-alarm conditions, the ECO5700M “EcoMag” operates in a low current `Sleeping Mode’ of 70mA @ 24V with a holding force of 340kg. In the event of an unauthorised attempt to open the door, the ECO5700M “EcoMag” “wakes up” and goes into an Alarm Mode with full current of 300mA @ 24V applied to the device, instantly increasing the holding force to up to 680kg.



    The EcoMag operates on multi voltage 10-26VDC, provides an Early Warning (EW) signal output, has a built-in local Alarm Buzzer, with full monitoring of Lock Status and Door Status, long distance Light Panel indicator and an Exit Switch Delay function.



    This device is provided with the FSH patented Anti-Tamper-Plate as standard.

    Technical Specification

    PART No.

    		ECO5700M
         FUNCTION

    Power To Lock (Fail Safe)

    HOLDING STRENGTH



    Up to 680kg in “Alarm-Mode”

    340kg in “Sleep-Mode”

    VOLTAGE/CURRENT



    Multi Voltage 10-26VDC

    Sleep-Mode: 12VDC=140mA/24VDC=70mA

    Alarm-Mode: 12VDC=600mA/24VDC=300mA

    MONITORING

    Addressable Armature Plate

    Door Status Monitoring Sensor (DSS)  Lock Status Monitoring Sensor (LSS)

    Early Warning Signial Output and Local Alarm Buzzer  EW)

    Exit Switch Delay Function

    Long Distance Light Panel (LP)

    SIZE



    Magnet: L= 268 W= 40 D= 73mm

    Armature Plate: L= 209 W= 6.2 D= 66mm
