FSS1

High Security Sensors

PRODUCT DESCRIPTION

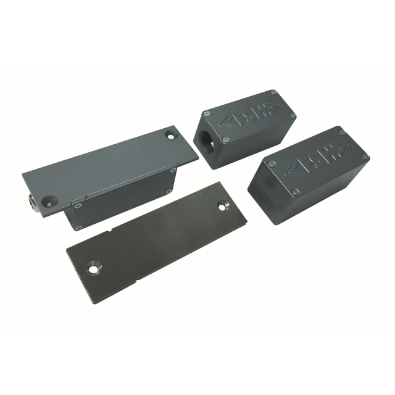

The FSS1 Series of High Security Door Monitoring Sensors are designed to provide a true high security solution for door position monitoring.

It is an award winning, state-of-the-art monitoring solution with a flush mount version for new construction, and surface mount version as a superior replacement for traditional magnetic balanced reed sensors.

Specifically developed for high security applications in government, high risk and defence installations, the FSS1 Series high security door monitoring sensors consist of seven magnetic sensors that are used to detect a unique magnetic footprint from an array of magnets on the magnetic face plate. One sensor is used to detect the position of the magnetic face plate in relation to the device, while the other six sensors are used to determine the polarity, size, strength and position of the magnets on the unique magnetic face plate in relation to the memorised pattern.

The sensor is designed to operate on a hinged door swinging in one direction. The FSS1 is equipped with sophisticated anti-tamper facilities. The product is listed in the Australian Government Security Equipment Evaluated Product List (SEEPL) and UL listed to UL 634.2.

Technical Specification





PART No.





FSS1-S / FSS1-S-NC





FSS1-F





FUNCTION





FSS1-S - Surface mount conduit version

FSS1-S-NC -Surface mount no conduit version





Flush mount version (morticed)





VOLTAGE / CURRENT





10 - 30VDC/typically 50mA





10 - 30VDC/typically 50mA





SECURITY TAMPER PROOF LEVEL





Highest (SL4)





Highest (SL4)





ALARM & TAMPER CONTACTS





N.C. common N.O., 0.2A @ 30V plus changeover contacts for access control system





        N.C. common N.O., 0.2A @ 30V plus changeover contacts for access control system




TOLERANCE

Door Gap 1 - 7mm Door Movement 15mm

Door Gap 1 - 7mm Door Movement 15mm

END OF LINE COMPATIBILTY

Space for type 1 & 2 modules

Space for type 1 & 2 modules

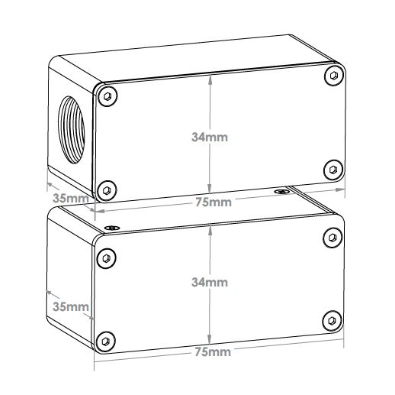

DIMENSIONS

L=75mm H=34mm D=35mm

L=110mm D=32mm W=35mm

APPROVALS



Rated to IP67 | RCM Compliant | SCEC Approved, Security Level 4 (SL4) rated



Rated to IP67 | RCM Compliant | SCEC Approved, Security Level 4 (SL4) rated

ARRAY MAGNETS

Up to 8 magnets for unique magnetic footprint

Up to 8 magnets for unique magnetic footprint



HALL EFFECT SENSORS

7

7



PATENTS



Patents granted and pending worldwide based on PCT/AU2014/000210



Patents granted and pending worldwide based on PCT/AU2014/000210



MANUFACTURE



Designed & Manufactured in Australia

Designed & Manufactured in Australia
